Input

Input information is prepared conveniently in the graphical regime inside the program or may be imported:

Geometry and bathymetry of the area of computation.
Locations of the open boundaries and open boundary conditions.
Loading of pollutants from internal sources and from open boundaries.
Time/space variable wind and atmospheric pressure fields.
Bottom and ice roughness field.
Analytical expressions for empirical coefficients.
Initial conditions.

Using geographical maps of the computational domain as backgrounds makes pre- and post processing even more convenient.

Output

Output information is presented in the graphical form in the program:

Velocity and flux vector fields.
Izolines and 3D bird’s eye views of water levels.
izolines and 3D bird’s eye views on depths (depths may change due to silting or erosion).
Concentrations, temperature and salinity izolines.
Ttime histories of all variables in selected locations.
Spectrum of water surface oscillations.
Vertical distribution of all variables on selected cross-sections and locations.
Combined izoline and vector fields of velocities et al.
Fields of differences between variables in different projects (for example, differences in concentration fields due to transfer of outfalls of treatment plant)
Discharge of bottom sediments.

Isolines of the concentrations of suspended sediments — Isolines of the concentrations of suspended sediments dumped during 8 days in 10 points located in a marine underwater dump to the west of the Tolbukhin shallow

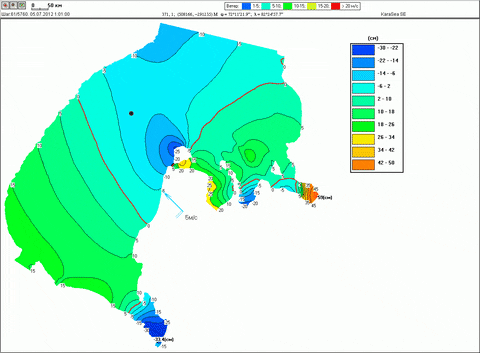

Tidal level oscillations in the Kara Sea — Tidal level oscillations in the Kara Sea during 4 days

Oscillations of tidal currents during one day — Oscillations of tidal currents in the area of Posyet Bay during one day

Oscillations of isolines of total phosphorus concentrations — Oscillations of isolines of total phosphorus concentrations discharged into Neva Bay from the outfalls of treatment plants and from the Neva during one day. The situation of November 1998

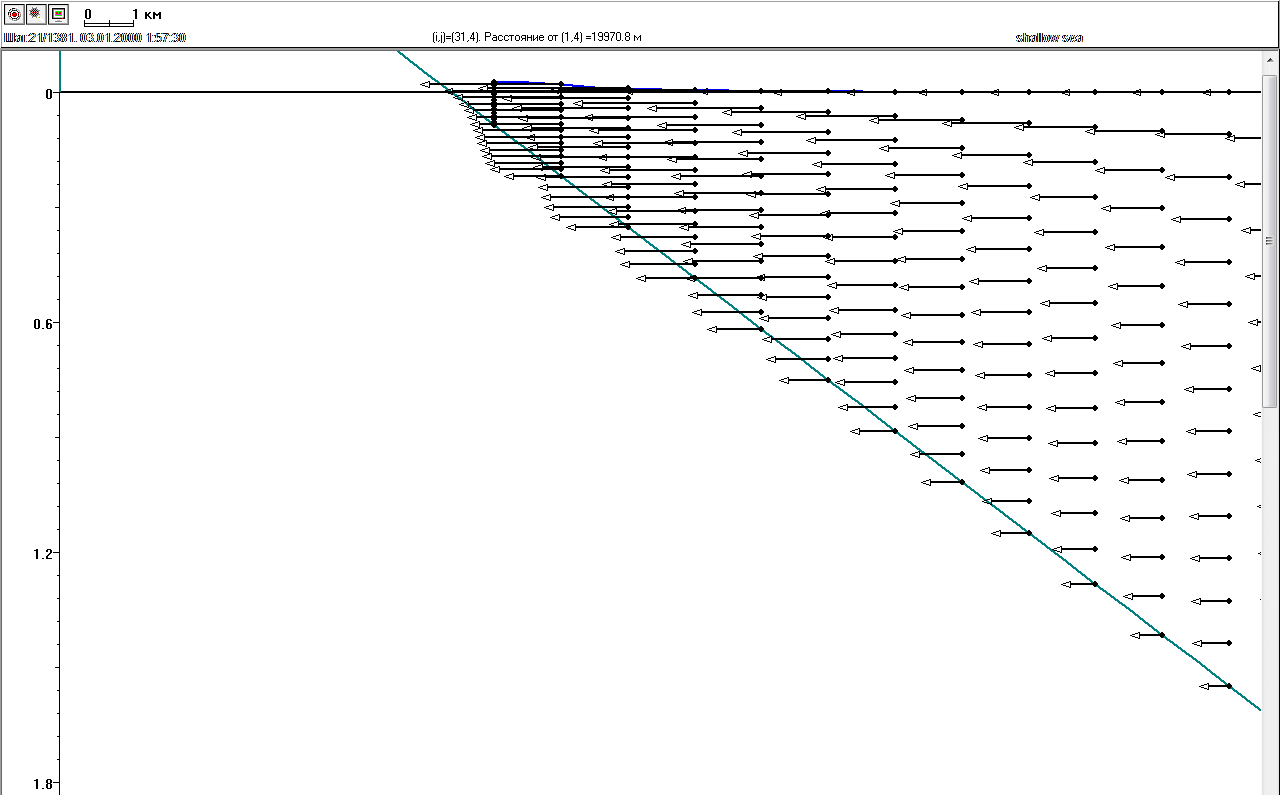

Storm surge on a flat slope in the shallow sea — Storm surge on a flat slope in the shallow sea - land flooding

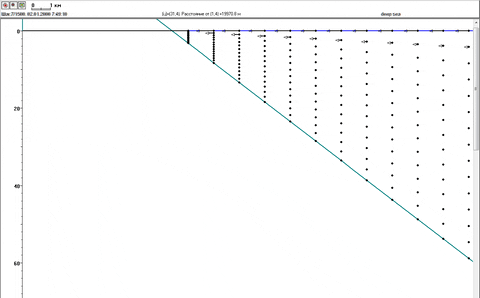

Storm surge on a flat slope in the deep sea — Storm surge on a flat slope in the deep sea - no land flooding

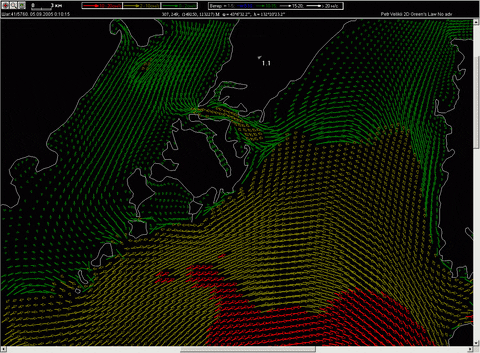

Tides in Peter the Great Bay — Oscillations of tidal currents during one day in Peter the Great Bay

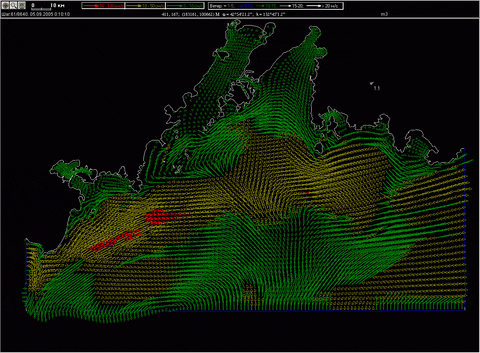

Oscillations of tidal currents during one day in Peter the Great Bay — Oscillations of tidal currents during one day in the northern part of Peter the Great Bay, in the Eastern Bosphorus Strait, Amur and Ussuri Bays

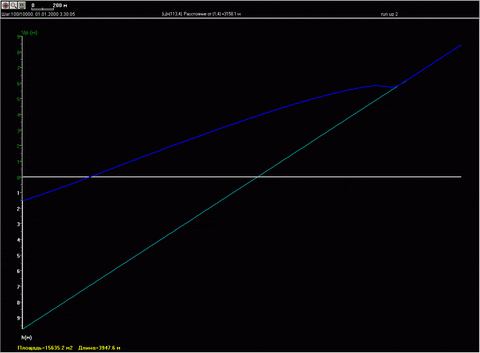

Wave run-up — Wave run-up on a flat slope

Oscillations of isolines of concentrations of pollutant — Oscillations of isolines of concentrations of pollutant discharged into Neva Bay from the outfalls of the South-West treatment plant during 9 days

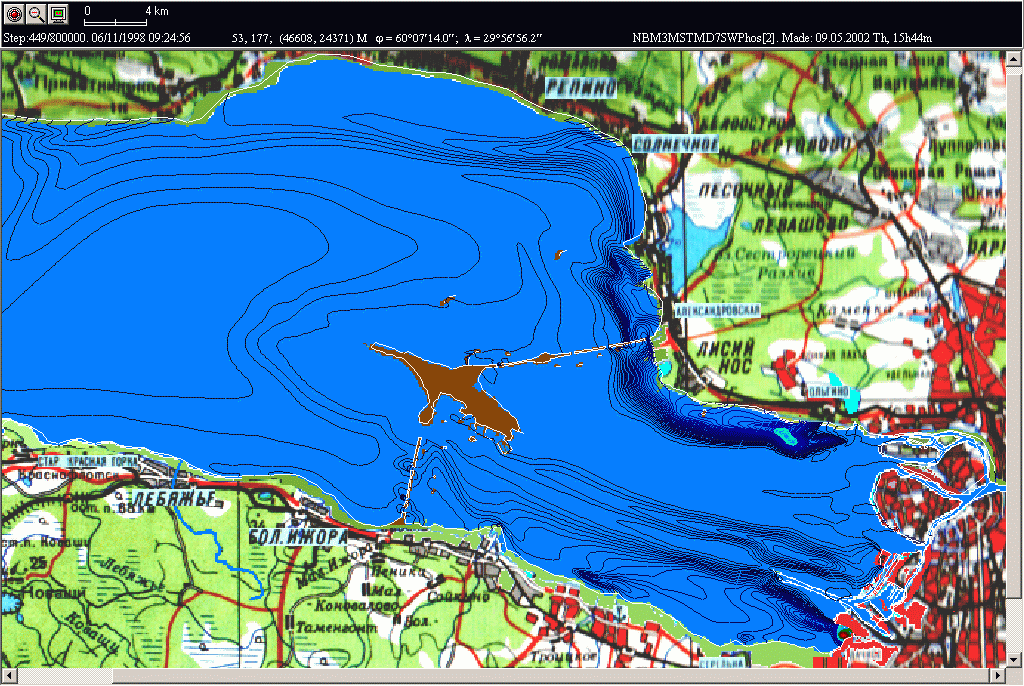

Emergency spill in Neva Bay — Propagation of emergency spill in Neva Bay

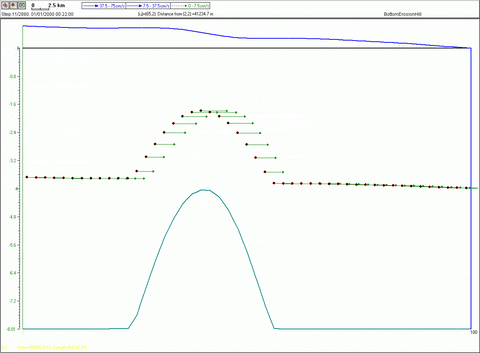

Sand dune movement by the current — Sand dune movement by the current. Van Riin method is used

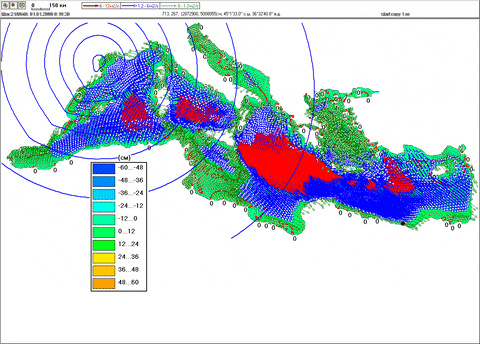

Meteo tsunami in the Mediterranean Sea — Meteo tsunami in the Levantine basin of the Mediterranean Sea caused by a remote extreme cyclone: level isolines and vectors of full stream.

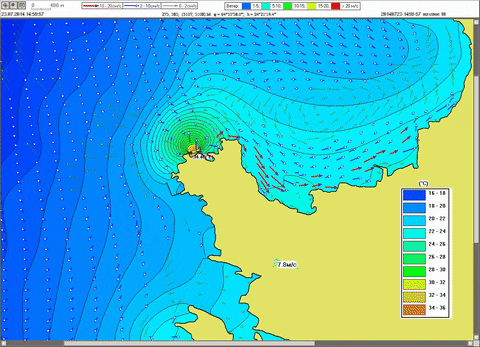

Water temperature in the area of the outfall of Hanhikivi NPP — Isolines of water temperature and vectors of surface velocity in the area of the outfall and water intake of Hanhikivi NPP during the hottest five-day period. July 2014

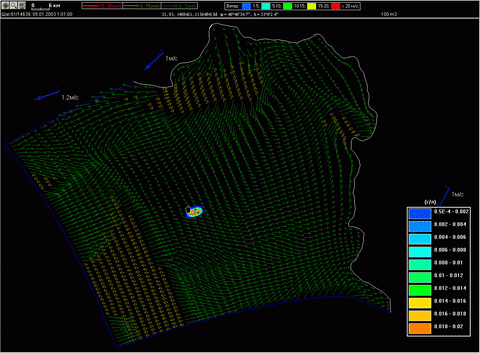

Concentrations in the Northern Caspian during an emergency spill — Velocity vectors and isolines of oil concentrations in the Northern Caspian during an emergency spill of 50 thousand m3 at the Kashagan field. Weather conditions of January 2013

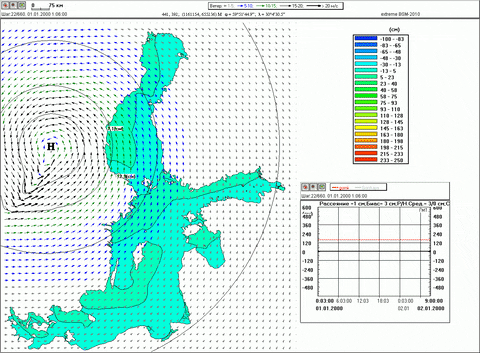

Flood in St. Petersburg during propagation of an extreme cyclone — Flood in St. Petersburg during propagation of an extreme cyclone along the most dangerous trajectory

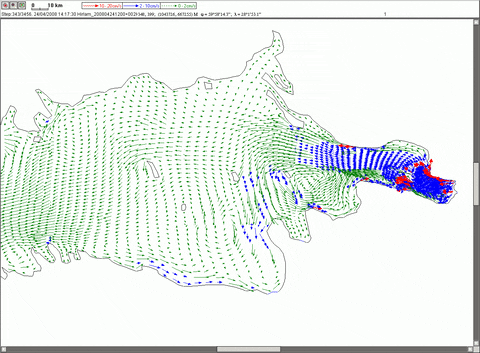

Currents in the Eastern Gulf of Finland — Currents in the Eastern Gulf of Finland caused by unsteady winds in ordinary situation

Wave run-up on a flat slope with a vertical wall on the edge

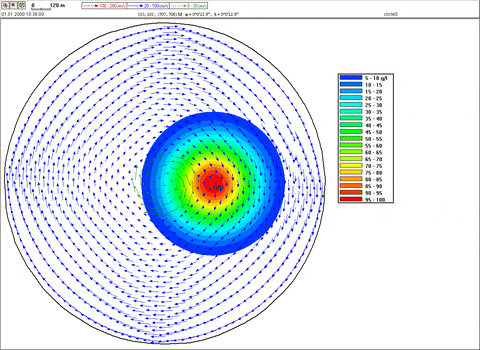

Advection of pollutant spot in a cylindrical basin — Advection of pollutant spot in a cylindrical basin during solid-state rotation of a liquid - no numerical diffusion

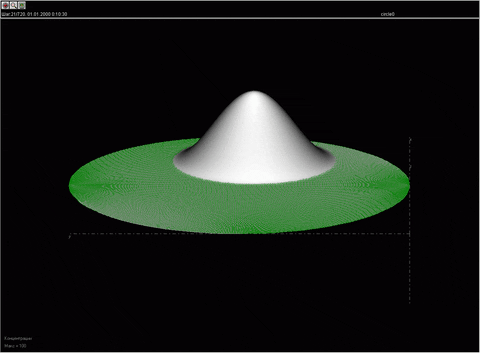

Advection of pollutant spot in a cylindrical basin — Bird’s eye view on advection of pollutant spot in a cylindrical basin during solid-state rotation of a liquid - no numerical diffusion

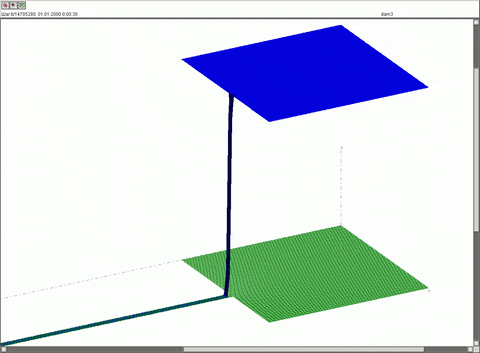

Destruction of the dam — Formation of a wave of level lowering during destruction of the dam

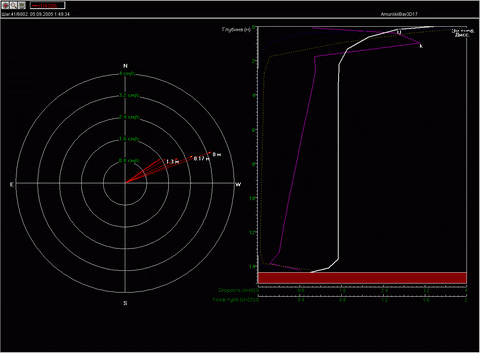

Vertical distribution of velocity — Vertical distribution of velocity and turbulence characteristics in the tidal currents in the central part of Amur Bay

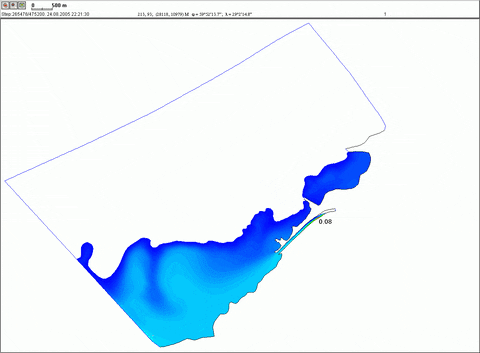

Isolines of concentration of pollutant discharged into Koporskaya Bay — Isolines of concentration of pollutant discharged into Koporskaya Bay via the waste channel of the Leningrad NPP-2 during the hydrometeorological situation in late summer 2005

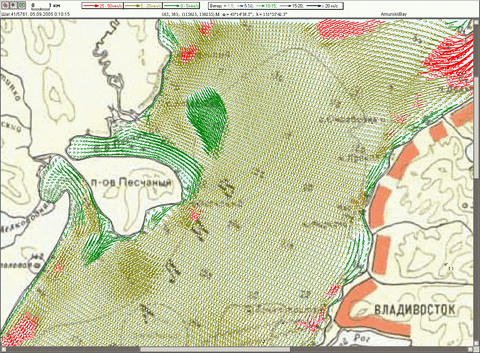

Tides in the central part of Amur Bay — Oscillations of vectors of the depth averaged velocity in tides in the central part of Amur Bay

Seiches - natural oscillations of water level — Seiches - natural oscillations of water level in a cylindrical basin, which are described by the Bessel function

Isolines of concentration of salinity, discharged into Koporskaya Ba — Isolines of concentration of salinity (mg/l) discharged into Koporskaya Bay via the waste channel of the Leningrad NPP-2 during the hydrometeorological situation in late summer 2005

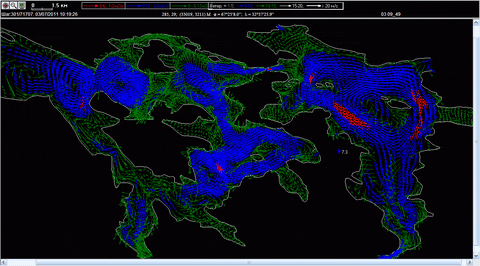

Stream vectors in Lake Imandr — Oscillations of full stream vectors in Lake Imandra during 5 days.
